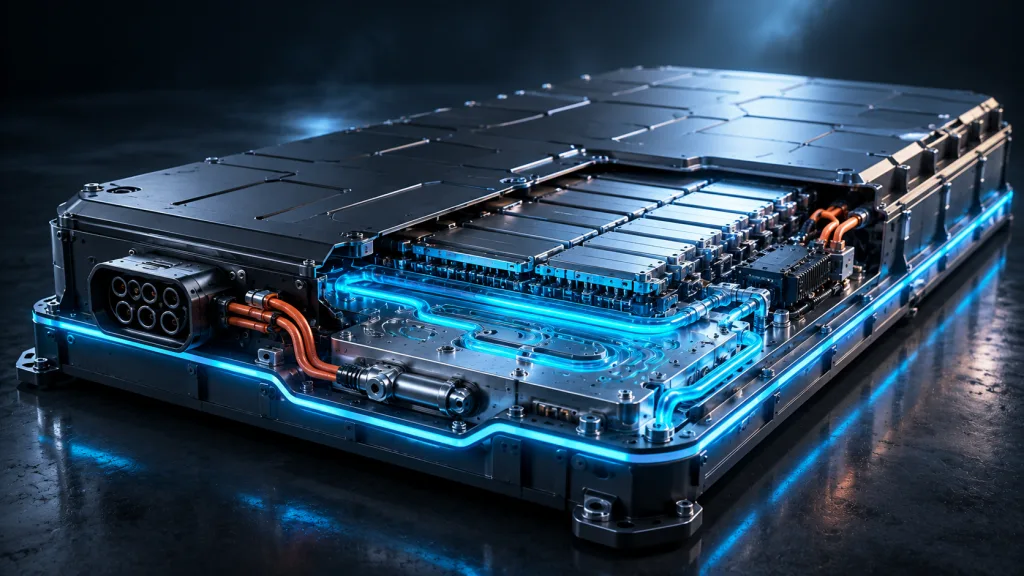

Battery — we make what runs

One cell, two jobs.

Proven Japanese LTO cell technology — extreme cycle life, ultra-fast charging, high intrinsic safety — engineered into liquid-cooled Ampinity modules and packs for traction and grid storage. Built under IATF16949 / ISO9001.

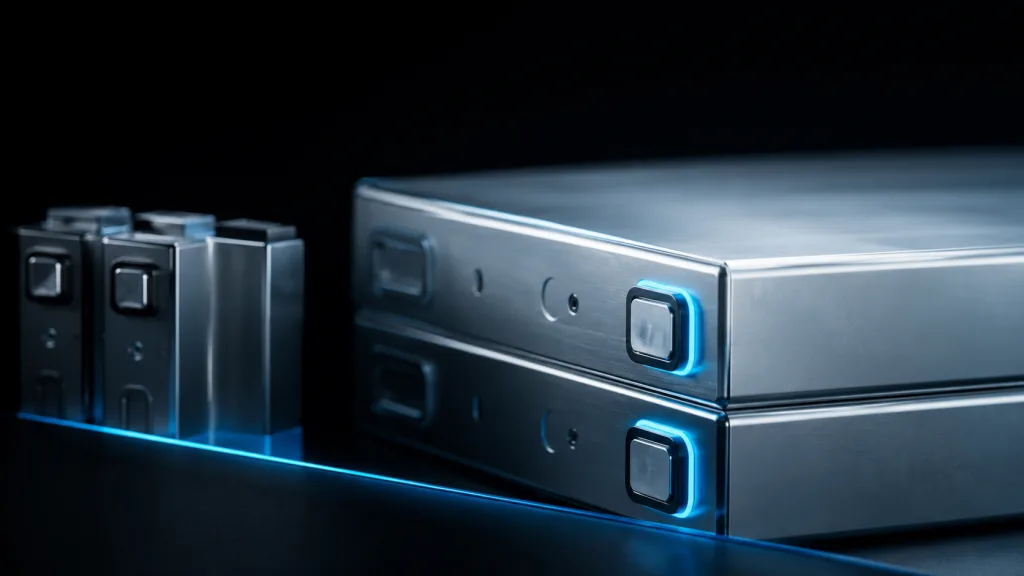

The cell

The cell

Japanese LTO.

  • High-energy
  • High-power
  • Combination

20,000+ cycles · ~80% in ~6 min · −30 °C · full 0–100% SOC

Full specifications

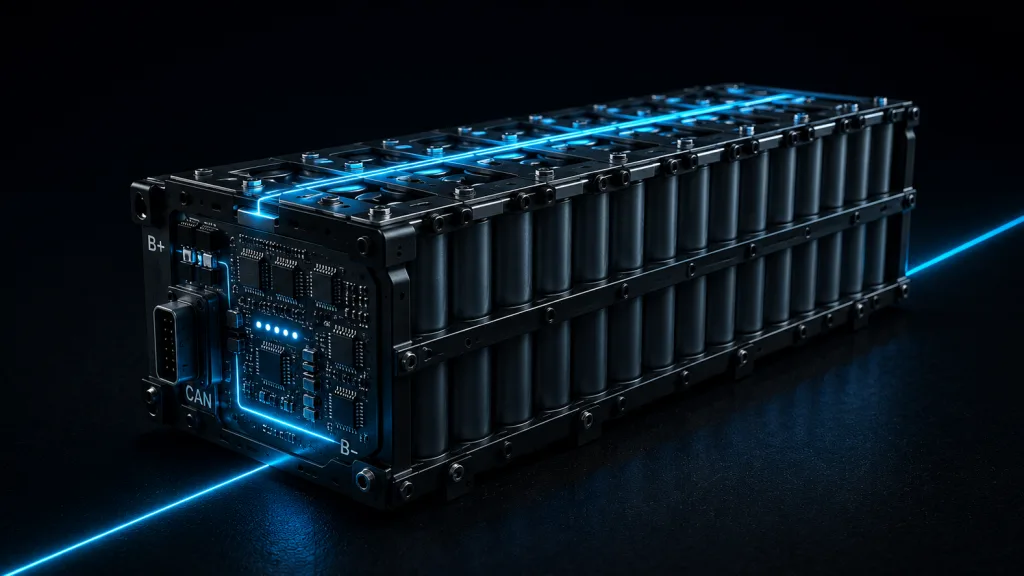

The module

The module

2P × 12S industrial.

  • 1,076–1,410 Wh
  • 160 A continuous
  • −30 to +50 °C

Built-in CMU + CAN · ~14–16.5 kg

Full specifications

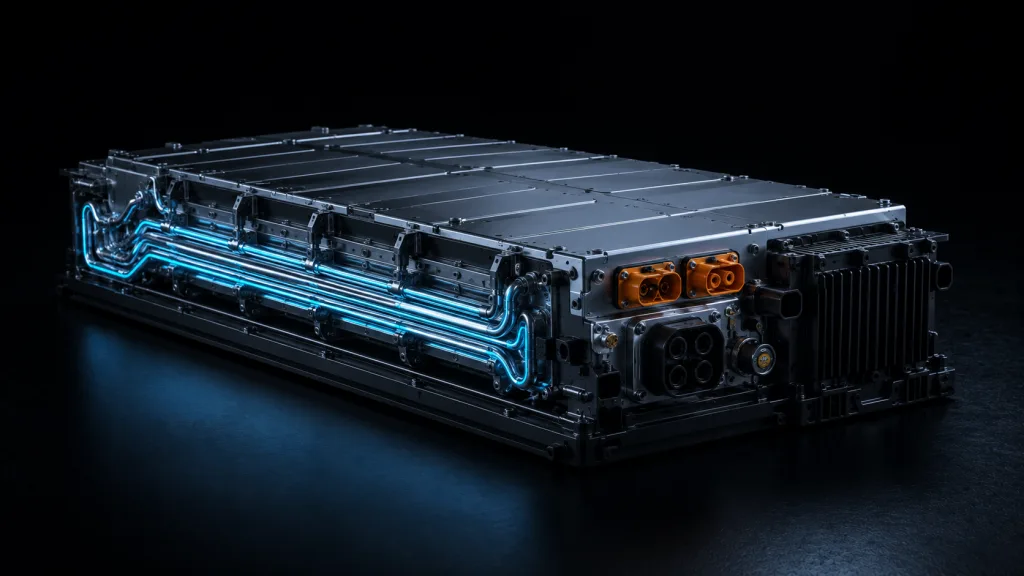

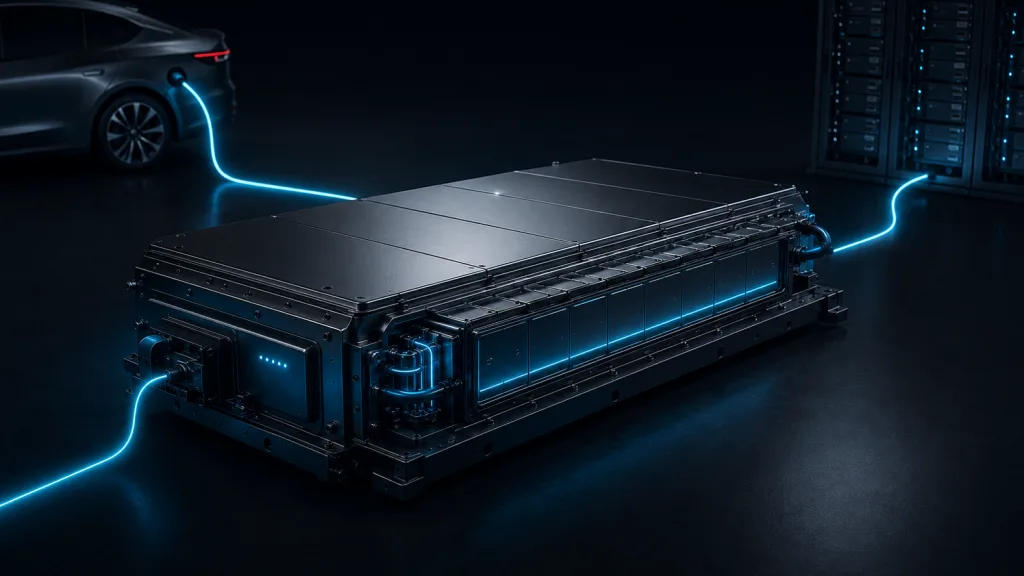

The Ampinity pack

The Ampinity pack

Liquid-cooled.

  • up to 660 V
  • 10–200 kWh
  • CCS2

Traction (Vehicles) + grid storage (Energy BESS)

Full specifications

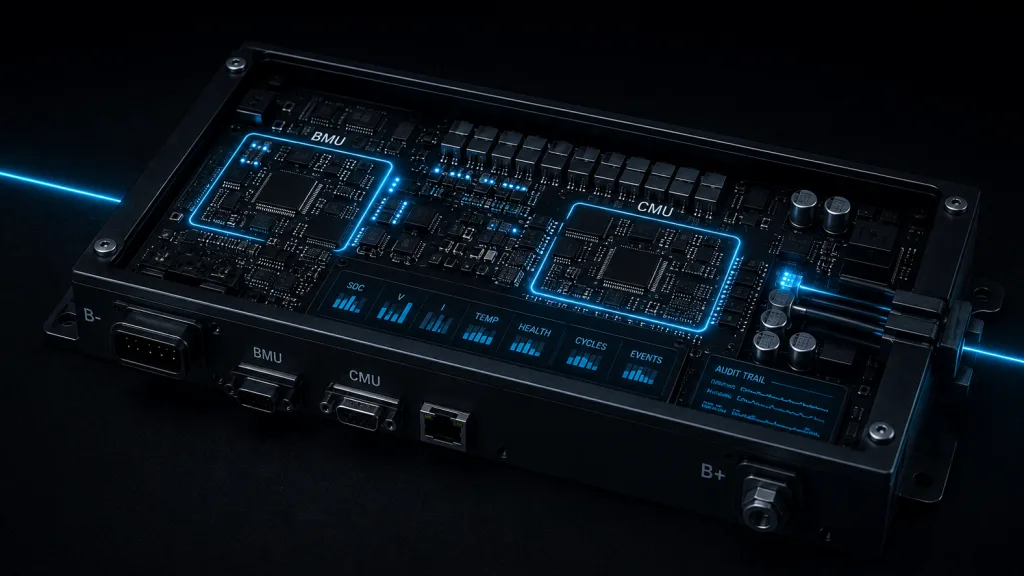

Battery management

Battery management

BMU + CMU.

  • SOC + protection
  • Per-module balancing
  • Ethernet / CAN

Ampinity BMS · audit-trail logging

Full specifications

Specifications

20,000 cycles, two jobs.

Key characteristics: low fire/explosion risk (LTO short-circuit phase-transition) · 20,000+ cycles (≥70% capacity) · ~80% charge in ~6 minutes · −30 °C operation · high input/output · full 0–100% usable SOC.

Battery Cells & Packs — Japanese LTO — Power-optimised cells with extreme cycle life, ultra-fast charging, full-range usability and high intrinsic safety, under automotive-grade quality systems (IATF16949 / ISO9001).
Cell family Cell Capacity Nominal V Output power Input power Energy density
High-energy 20 Ah 20 Ah 2.3 V 1,200 W 1,100 W 176 Wh/L · 89 Wh/kg
High-energy 23 Ah 23 Ah 2.3 V 1,000 W 1,000 W 202 Wh/L · 96 Wh/kg
High-energy 26 Ah 26 Ah 2.3 V 1,200 W 1,500 W 229 Wh/L · 106 Wh/kg
Combination 20 Ah-HP 20 Ah 2.3 V 1,900 W 1,900 W 176 Wh/L · 84 Wh/kg
High-power 10 Ah 10 Ah 2.4 V 1,800 W 1,500 W 92 Wh/L · 47 Wh/kg
High-power 2.9 Ah 2.9 Ah 2.4 V 520 W 410 W 85 Wh/L · 46 Wh/kg
  • Safety — on an internal short circuit the LTO negative electrode turns highly resistive, minimising the current flow that can lead to rupture or fire.
  • Long life — 20,000+ cycles, capacity ≥ 70% even after 20,000 charge/discharge cycles.
  • Rapid charging — to about 80% of capacity in roughly 6 minutes.
  • Low-temperature operation — usable even at −30 °C, with almost no lithium-metal deposition.
  • High input/output — captures regenerative-braking energy and supplies high pull-away current.
  • Wide usable SOC — the full 0–100% range, so a system needs less installed capacity.
Ampinity pack & integration
Cell technologyJapanese LTO (lithium titanate)
Vehicle / BESS pack energy10–30 kWh (LMV) · 30–50 kWh (7 m bus) · 80–200 kWh (buses & trucks)
Pack voltageup to 660 V (modular, series / parallel)
CoolingLiquid-cooled
ManagementAmpinity BMS + IoT telematics, audit-trail logging
Charging interfaceCCS2 (240 / 360 kW light; 800 kW / 1.6 MW heavy)
ApplicationsTraction (buses, trucks, LMVs) and grid storage (Energy BESS)
ManufacturingIATF16949 / ISO9001 automotive-grade quality systems

Cell figures are the published characteristics of the Japanese LTO cell platform; Ampinity pack energies are engineering targets for the current range.

Industrial modules — 2P × 12S industrial modules with built-in CMU + CAN. Common: ≈ DC 27.6 V (range 18.0–33.0 V); 160 A continuous / 350–500 A rush; ambient −30 to +50 °C; ~14–16.5 kg.
Module Rated capacity Nominal energy
Type3-20 40 Ah 1,104 Wh
Type3-20HP 39 Ah 1,076 Wh
Type3-23 45 Ah 1,242 Wh
Type3-26 51.1 Ah 1,410 Wh
Type4-23 45 Ah 1,242 Wh
Industrial packs — BMU-equipped — no external protection circuit required.
Pack Capacity Nominal energy Nominal V Max charge / discharge
24 V 22 Ah 556 Wh DC 25.3 V 125 A (200 s)
24 V (2 × parallel) 44 Ah 1,113 Wh DC 25.3 V 150 A (200 s)
48 V (2 × series) 22 Ah 1,113 Wh DC 50.6 V 125 A (200 s)

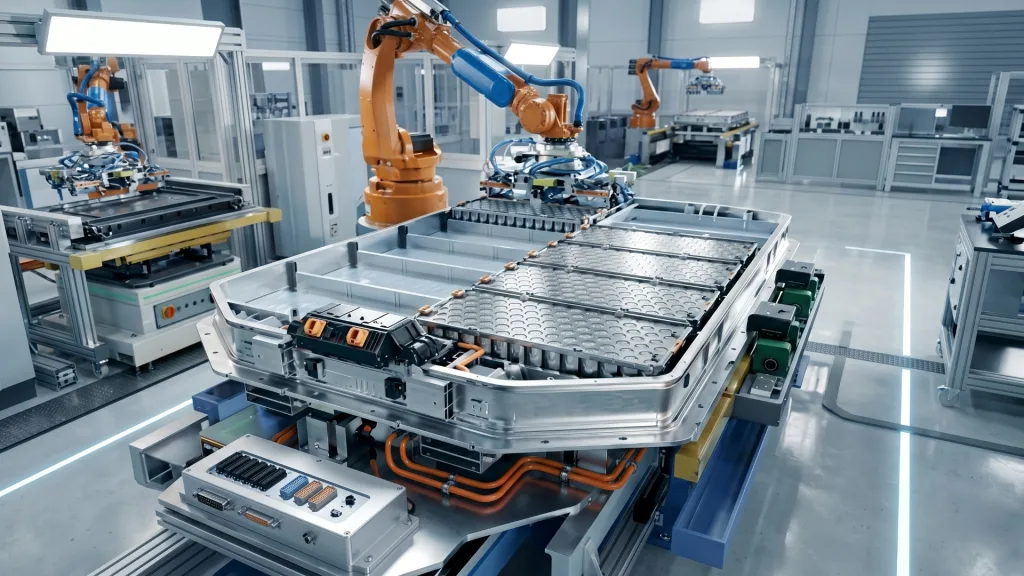

Tested on ourselves first

Qualified the hard way — on our own fleet and grid.

Cells, tyres and chargers earn their place by surviving our own duty cycles first, under automotive-grade quality systems and logged to the AI audit trail. What we ship has already proven itself inside the system.

One system

This is how the system feeds itself.

Watch one cell do two jobs: the same Japanese LTO chemistry drives a bus by day and firms a city’s peak in an Energy BESS by night. The stations built on this floor are bolted to corridors and run by the operated Network. And a tyre that has worn out on the fleet comes back through pyrolysis as carbon black for new rubber, oil that goes to Energy as fuel, and steel for recycling. Three hand-offs you can point to — not a slogan about a system.

What it’s all for

A battery that lasts a livelihood.

Extreme cycle life and high intrinsic safety mean the pack outlives the loan — power a driver can depend on, day after day.

For the people who depend on the hardware

Build on what we build.

For capital, for manufacturers and operators, and for the people who depend on hardware that simply holds.

Explore the investment case Talk to the Components team

Momentum without end. Everything connected. Nothing wasted. Answerable at every turn.

Further reading

Guides on this

Battery guide LTO vs LFP batteries: which EV battery chemistry suits which duty LTO and LFP EV battery chemistry compared on cycle life, charge speed, temperature, energy density, cost and safety, then matched to each fleet duty cycle. Read the guide Energy guide Grid-scale battery storage (BESS) in India — an explainer Grid-scale battery storage (BESS) in India explained: peak shaving, firming renewables, the evening peak, and why cycle life and safety decide the cell. Read the guide

Questions

Frequently asked

What battery chemistry do Ampinity cells use?

The cells and packs are built on proven Japanese LTO (lithium titanate) cell technology — an intrinsically safe chemistry with a 20,000-cycle life, an ~80% charge in about 6 minutes, the full 0–100% usable range and −30 °C operation.

Can the same cell serve both vehicles and grid storage?

Yes — the same chemistry that drives a truck can hold a city's evening peak, feeding traction for buses, trucks and LMVs and storage for Energy's BESS from one engineering line, so a fleet and a grid operator buy the same proven cell.

What is the pack architecture?

The architecture uses liquid-cooled modules and packs up to 660 V, BMU-managed.

How is cell quality assured?

The cells carry automotive-grade quality (IATF16949 / ISO9001) and are recorded on the immutable audit trail, backed by AI Assurance.
